OFS-PE-DT10
8ports 100M PSE +2ports 100M up link Ports POE Switch
Description:
OFS-PE-DT10 Ethernet switch with 10*10/100Mbps RJ45 ports. It is designed to meet the various application needs, and provide an Ethernet network communication solution with a high performance-price ratio.
OFS-PE-DT10’s high availability and reliability, as well as the rich security features, makes it ideal for secure data transmission.for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, VoIP phone, wireless AP and other PoE supported devices.. Power input also chooses industry-standard types of power.
Technical Specifications
| Product Name | 10-port 10/100Mbps Ports |
| Product Model | OFS-PE-DT10 |
| Network Protocols | IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX/FX;IEEE802.3ab 100Base-T; IEEE802.3x; |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) |
| Performance Specification | Bandwidth: 2Gbps Packet Buffer Memory:1M Packet Forwarding Rate:148800pps/port MAC Address Table:1K /port |
| PoE Specification | PoE Standard: IEEE802.3af/ IEEE802.3at |
| PoE ports: 8 port support PoE |
| Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
| PoE port Auto detect AF/AT devices |
| Output Voltage: DC48V |
| Power Pin Assignment:4/5+;7/8- |
| Power Type: End-span( Mid-span optional) |
| Forwarding Mode | Store-and-Forward |
| LED Indicators | Power: PWR; Link;POE ; Link/Act |
| Power Supply | Input Voltage: DC52V (48~55V) |
Feature:
10 Port 10/100Mbps with Auto Uplink™
8 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
Automatic MAC address learning and aging
10/100Mbps Auto-negotiation , auto-MDI-MDI-X
LED indicators for monitoring power/link/activity
Supports10/100Mbps-Full/Half-duplex
Supports Wall-mount and DIN-Rail installation ,Optional.
Supports Broadcast Storm Control
Supports Relay output for power failure
Excellent heat elimination without cooling fan.
Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
Harsh environment or higher requirement
-10℃-55℃operating temperature range.
Feature
Product Description
- 10 Port 10/100Mbps with Auto Uplink™
- 8 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
- Automatic MAC address learning and aging
- 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
- LED indicators for monitoring power/link/activity
- Supports10/100Mbps-Full/Half-duplex
- Supports Wall-mount and DIN-Rail installation ,Optional.
- Supports Broadcast Storm Control
- Supports Relay output for power failure
- Excellent heat elimination without cooling fan.
- Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
- Harsh environment or higher requirement
- -10℃-55℃operating temperature range.

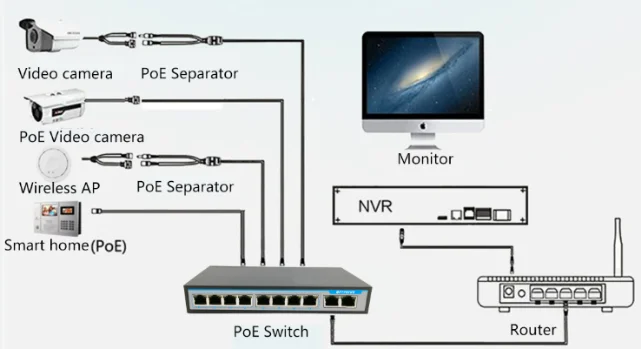

Solution
Chassis Dimension:
Package Dimension:
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4. Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5. Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
